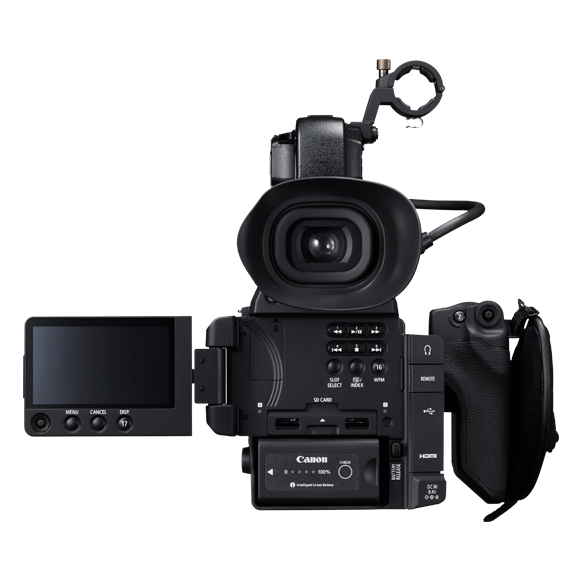

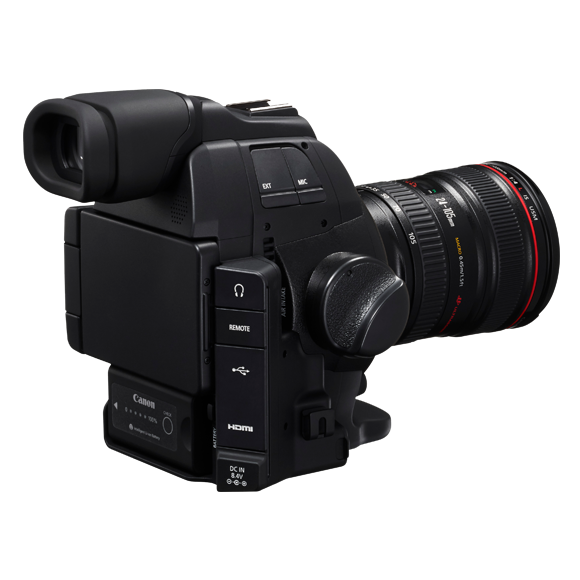

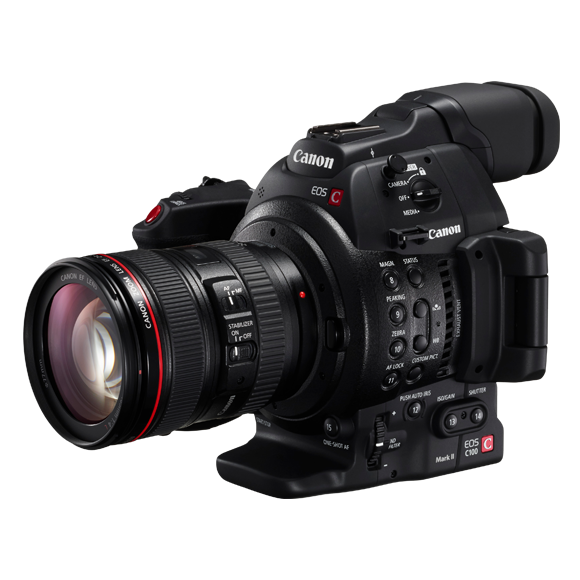

The Canon EOS C100 Mark II Digital HD Camera offers all of the advantages of its predecessor while adding advanced new imaging and operational features by popular demand. Optimized for one-person use and compatible with the full range of Canon EF, EF-S, and EF-mount CN-E Cinema lenses, this greatly evolved camera integrates the same Emmy®-Award winning Canon Super 35mm CMOS Sensor used in all of Canon's Cinema EOS cameras, but now replaces the Canon DIGIC DV III Image Processor with the more sophisticated Canon DIGIC DV 4 Image Processor. In addition to improved RGB video processing, the camera's dual codec capability supports simultaneous AVCHD and MP4 recording, including 59.94P capture along with slow and fast motion recording. Dual Pixel CMOS AF and Face AF, wireless FTP video transfer, a built-in Canon Log LUT, GPS support and support for an extensive range of workflows, are additional operational features that have been added. A re-designed 270-degree rotating 3.5-inch OLED panel, and a tiltable large-size EVF with large-size eyecup, further empower the camera operator. The compact, redesigned, lightweight body of the Canon EOS C100 Mark II Digital HD Camera has also evolved, and now includes a built-in microphone, START/STOP buttons clearly labeled in red, transparent covers on its twin SD card slots, improved battery insertion and removal, and an increased number of assignable buttons. Add to this its built-in ND filters, removable rotating pistol grip, removable top handle with twin XLR inputs, built-in stereo mic, and audio controls, and the Canon EOS C100 Mark II emerges as a powerfully evolved Super 35mm Digital HD camera designed to serve your quest for greater freedom of creative expression in HD video production.
Specifications
Imaging Sensor
Effective Pixels
3840 x 2160 pixels; Approx. 8.29 megapixels
Total Pixels
4206 x 2340 pixels; Approx. 9.84 megapixels
Sensor Type: CMOS
Sensor Size: Super 35; 24.6 x 13.8 (28.2 mm diagonal); 6.4 µm cell pitch
Scanning System: Progressive
Number of Sensors: 1
Filter: RGB Primary Colour Filter (Bayer Array)
Imaging Processor: Digic DV 4
Lens System
Interchangeable Lens System: EF-mount for compatibility with EF, EF-S and EOS EF Cinema lens systems.
Zoom/Focus Preset: Not Available
Shockless Zoom: Not Available
Digital Teleconverter: Not Available
ND Filter: Mechanical ND filter system with option of clear, 2, 4, and 6 stops
Iris Dial:
Manual setting in 1/2-step increments, 1/3-step increments or fine
Push Auto Iris Control
Auto Iris Control
Peripheral Illumination Correction: Available
Exposure and Metering
Exposure Modes:
Manual
Push Auto Iris Control
Auto Iris Control (STM lenses)
Metering Modes: Available (Standard Center Weighted, Spotlight, Backlight)
Gain: Normal Setting -6dB to 30 dB (-6 dB to 42 dB with Sensitivity Expansion ON)
ISO: 3200 to 80,000 in 1/3 stop increments
Auto Gain Control (AGC): Not Available
Shockless Gain: Not Available
Exposure Compensation/AE Shift: Available
Shutter Modes
3 Modes: OFF; Speed; Angle; Slow Shutter; Clear Scan
Speed setting can be set in 1/2 or 1/3 stop increments
Shutter Speed Range
59.94i/: 1/60 to 1/2000 in 1/4 or 1/3 stops; SLS: ¼, 1/8, 1/15, 1/30; CS: 59.94 Hz - 250.51 Hz
PF30: 1/30 to 1/2000 in 1/4 or 1/3 stops; SLS: ¼, 1/8, 1/15; CS: 29.97 Hz - 250.51 Hz
23.98p/PF24: 1/24 to 1/2000 in 1/4or 1/3 stops; SLS: 1/3, 1/6, 1/12; CS: 23.98 Hz - 250.51 Hz
50i: 1/50 to 1/2000 in 1/4 or 1/3 stops; SLS: 1/3, 1/6, 1/12 1/25; CS: 50.00 Hz - 250.51 Hz
PF25: 1/25 to 1/2000 in 1/4 or 1/3 stops; SLS: 1/3, 1/6, 1/12; CS: 25.00 Hz - 250.51 Hz
Shutter Angle Settings
59.94i: 360, 240, 216, 180, 120, 90, 60, 45, 30, 22.5, 15, 11.25
PF30: 360, 240, 216, 180, 120, 90, 60, 45, 30, 22.5, 15, 11.25
23.98p/PF24: 360, 345.6, 288, 240, 180, 172.8, 144, 120, 90, 86.4, 72, 60, 45, 30, 22.5, 15, 11.25
50i: 360, 300, 240, 180, 150, 120, 90, 60, 45, 30, 22.50, 15, 11.25
PF25: 360, 300, 240, 180, 150, 120, 90, 60, 45, 30, 22.50, 15, 11.25
Iris (Aperture) Range
Lens Dependent (1.0 to 91 in 1/2 or 1/3 stop increments - EF / EF-S lenses only) Canon Cinema EOS lenses are continuous manual.
Focus
Focus Settings: Manual, One-Shot AF, Continuous AF
Autofocus System
Available; AF is dependent on interchangeable lenses
(a) Dual Pixel CMOS AF (screen center)
(b) TTL-Video Signal Sensing System (contrast detection system) when Face AF is selected
AF Modes: One-Shot AF, Continuous AF
Recording/Codec
Signal System: NTSC and PAL
Compression: MPEG-4 AVC / H.264
Colour Space: Available
Maximum Bit rate
AVCHD: 28 Mbps
MP4: 35 Mbps
Recording Options
AVCHD:
Mode |
Resolution |
Frame Rate |
28 Mbps |
1920 x1080 |
59.94P |
24 Mbps |
1920 x1080 |
59.94i/PF29.97/23.98P |
17 Mbps |
1920 x1080 |
59.94i/PF29.97/23.98P |
7 Mbps |
1440 x1080 |
59.94i/PF29.97/23.98P |
MP4:
Mode |
Resolution |
Frame Rate |
35 Mbps |
1920 x1080 |
59.94P |
24 Mbps |
1920 x1080 |
29.97P/23.98P |
17 Mbps |
1920 x1080 |
29.97P/23.98P |
4 Mbps |
1280 x 720 |
29.97P/23.98P |
3 Mbps |
640 x 360 |
29.97P/23.98P |
Recording Time
AVCHD | Bit Rate (VBR) | |||
Card Capacity (SD Card) |
1920 x 1080 | 1440 x 1080 | ||
28 Mbps | 24 Mbps | 17 Mbps | 7 Mbps | |
8 GB | 35 minutes | 40 minutes | 1 hour 00 minutes |
2 hours 20 minutes |
16 GB | 1 hour 15 minutes |
1 hour 25 minutes |
2 hours 05 minutes |
4 hours 45 minutes |
32 GB | 2 hours 30 minutes |
2 hours 55 minutes |
4 hours 10 minutes |
9 hours 35 minutes |
64 GB | 5 hours 05 minutes |
5 hours 55 minutes |
8 hours 20 minutes |
19 hours 10 minutes |
128 GB | 10 hours 10 minutes |
11 hours 55 minutes |
16 hours 45 minutes |
38 hours 25 minutes |
MP4 | Bit Rate (VBR) | ||||
Card Capacity (SD Card) |
1920 x 1080 | 1280 x 720 | 640 x 360 | ||
35 Mbps | 24 Mbps | 17 Mbps | 4 Mbps | 3 Mbps | |
8 GB | 30 minutes | 40 minutes | 1 hour 00 minutes |
4 hours 20 minutes |
5 hours 40 minutes |
16 GB | 1 hour 00 minutes |
1 hour 25 minutes |
2 hours 05 minutes |
8 hours 40 minutes |
11 hours 25 minutes |
32 GB | 2 hours 00 minutes |
2 hours 55 minutes |
4 hours 10 minutes |
17 hours 20 minutes |
22 hours 55 minutes |
64 GB | 4 hours 00 minutes |
5 hours 55 minutes |
8 hours 20 minutes |
34 hours 45 minutes |
45 hours 55 minutes |
128 GB | 8 hours 00 minutes |
11 hours 55 minutes |
16 hours 45 minutes |
69 hours 30 minutes |
91 hours 55 minutes |
*Recording will automatically stop when it has continued for 12 hours in AVCHD and MP4 |
Recording Media
SD Card x2 (Video, Still Images (JPEG), Custom Picture Settings [20 files], Menu Settings and other settings can be recorded); SD/SDHC/SDXC Supported; MMC Cards are not supported
File Format: AVCHD/ MP4
File System: FAT 32
Maximum Clip Number: 999 (per media)
Audio
Recording Format
AVCHD:
28 Mbps & 24 Mbps Modes: Linear PCM; 2-Channel; 16-Bit; 48 kHz
All Other Modes: Dolby Digital 2ch
MP4:
MPEG-4 AAC-LC; 2-Channel; 16-bit; 48 kHz
35-17 Mbps: 256 kbps
Less than 4 Mbps: 128 kbps
Built-in Microphone:
Monaural Microphone in Camera Body
Stereo Microphone in Handle Unit
External Audio Inputs: 2 - XLR inputs (Auto and Manual level settings)
External microphone terminal: (3.5 mm diameter)
Recording Channel Selection
This is used to set the allocation of the audio channels:
CH1/CH2: The CH1 signals are allocated to the L output channel, and the CH2 signals are allocated to the R output channel.
CH1/CH1: The CH1 signals are allocated to the L output channel, and the CH1 signals are allocated to the R output channel.
CH2/CH2: The CH2 signals are allocated to the L output channel, and the CH2 signals are allocated to the R output channel.
ALL CH/ALL CH: Signals obtained by mixing the CH1 and CH2 signals are allocated to the L and R output channels.
XLR Mic Trimming: Available; -12dB, -6 dB, 0dB, +6dB or +12 dB
Limiter: Available
Recording Level Adjustment Range: - Infinity to +18dB, Automatic
Separate controls for internal and externally connected microphones.
Phantom Power: Available; +48V
Headphone Adjustment:16 Settings; Volume is muted at lowest setting
Built-in Speaker: Yes; 16 level settings
1KHz Tone: Available; Off, -12, -18, or -20 dB
Features and Performance
Playback
(1)Standard Playback: The images and sound recorded under the previously stated recording options are played back.
(2)Special Playback:
Fast Forward: 5x Speed>15x speed>60x speed>5x speed...
Fast Reverse: 5x speed>15x speed>60x speed>5x speed...
Frame Forward: 1-frame increments
Frame Reverse: In 0.5 second increments (1-GOP increments)
Skip Playback: The first image located according to the number of times the skip button has been pressed is output, and played back. In temporary stop mode, the display moves to the start of the clip and pauses.
Rec. Review: Rec review is executed by pressing the rec review button while in camera mode. By selecting whether the play back from the start of the last clip on the selected media or play back the last 4 seconds of that clip. When continuous recording has been performed so that the recording extends from one care onto the other, only the images on the card in the current slot are played.
Slow Playback: None
Slow and Fast Motion Recording
Available in MP4 Mode Only. This function achieves a fast or slow motion effect by recording at a frame rate different from the one used during playback. The following recording frame rates can be selected using the camera's video quality and frame rate settings. No sound is recorded.
59.94 Hz mode (MP4)
Video Quality/playback frame rate |
S&F motion (Recording frame rate) [Playback speed] |
Recording bit rate |
Speed class of memory cards |
35 Mbps/59.94P | 29.97P [Fast x2] | 17.5 Mbps | Class 4 |
23.98P [Fast x2.5] | 14 Mbps | Class 4 | |
24 Mbps/29.97P | 59.94P [Slow x0.5] | 48 Mbps | Class 10 |
23.98P [Fast x1.25] | 19.2 Mbps | Class 4 | |
24 Mbps/23.98P | 59.94P [Slow x0.4] | 60 Mbps | Class 10 |
29.97P [Slow x0.5] | 30 Mbps | Class 4 | |
17 Mbps/29.97P | 59.94P [Slow x0.5] | 34 Mbps | Class 6 |
23.98P [Fast x1.25] | 13.6 Mbps | Class 4 | |
17 Mbps/23.98P | 59.94P [Slow x0.4] | 42.5 Mbps | Class 6 |
29.97P [Slow x0.8] | 21.3 Mbps | Class 4 |
50.00 Hz mode (MP4)
Video Quality/playback frame rate |
S&F motion (Recording frame rate) [Playback speed] |
Recording bit rate |
Speed class of memory cards |
35 Mbps/50.00P | 25.00P [Fast x2] | 17.5 Mbps | Class 4 |
24 Mbps/25.00P | 50.00P [Slow x0.5] | 48 Mbps | Class 10 |
17 Mbps/25.00P | 50.00P [Slow x0.5] | 34 Mbps | Class 6 |
Special Recording Functions: Relay Recording; Double-Slot Recording; Continuous Recording
Photo Recording Mode: Available; Images captured to SD Card; Images can be captured in Camera and Media modes.
Waveform Monitor:
Available; 5 Modes (Line/Line+Spot/Field/RGB/YPbPr)
Gain: 1x/2x
Vectorscope:
Available; 2 Modes (Spot/Normal)
Gain: 1x/5x
Exposure/Focus Aids: Peaking (white, red, yellow, blue), Zebra Pattern, Magnify, Edge Monitor Focus Assist, Black and White Mode
Interval Record: Not Available
Frame Record: Not Available
Pre-Record: Yes, 3 seconds cache (Audio and Video)
Scan Reverse: Available (Horizontal, vertical or both can be selected)
Time code:
Drop Frame (DF)* or Non-Drop Frame (NDF)
*59.94(i/P>/29.97P mode in 59.94 Hz mode only
Time Code Modes: Regen, Record Run, Free Run
Auto White Balance (AWB): Available (BT.709/Wide DR)
White Balance Presets: AWB, Daylight (5,500 K); Tungsten (3,000K); Kelvin (5,500K default); Set A; Set B
Custom Functions: Available, 8 total functions
Custom Display: Available; Total of 33 displays including audio level and remaining battery can be turned on and off
Assign Buttons: 17; Can be assigned functions as desired
Colour Bars: Available; Colour bars compliant with SMPTE, ARIB (59.94 Hz mode) & EBU/SMPTE (50.00 Hz mode)
Minimum Subject Illumination
59.94 Hz Mode: 0.3 Lux
(f/1.2 lens, 24 dB, PF29.27, 1/30s)
50.00 Hz Mode: 0.25 Lux
(f/1.2 lens, 24 dB, PF25.00, 1/25s)
Sensitivity
59.94 Hz mode: F9
[1920x1080/59.94i, ISO 640 (0 dB), 2000 lux, reflectance ratio of 89.9%]
50.00 Hz mode: F10
[1920x1080/50.00i, ISO 640 (0 dB), 2000 lux, reflectance ratio of 89.9%]
S/N Ratio
59.94 Hz Mode: 54db (Typical)
[1920x1080/PF29.97, Canon Log Base sensitivity ISO 850 (Dynamic Range 800%)]
50.00 Hz Mode: 54dB (Typical)
[1920x1080/PF25.00, Canon Log Base sensitivity ISO 850 (Dynamic Range 800%)]
Dynamic Range
During Normal Shooting: 300%
*With Canon Log Gamma or Wide DR Gamma: 800%
*ISO 850 or above - gain 2.5dB or above
EVF
Viewing Angle Adjustment: 28.2-degrees
Diopter Adjustment Range: +2.0 to -5.5
EVF Adjustments: Brightness, Contrast, Colour, Sharpness, and Backlight
LCD Monitor
Type: Rotating 3.5 inch Organiz EL (OLED) Display (1,230,000 pixels) on camera body
Display Adjustments: Brightness, Contrast, Colour, Sharpness, and Backlight (Normal or Bright)
Input/Output
Time code In/Out: Yes; through HDMI (Output Only)
HDMI: Yes (Type A); Video and Audio Output
Audio Input Terminal:
2 - Balanced 3-pin XLR (Mic Level, Mic Level with phantom power and Line Level) on handle unit
3.5mm Microphone terminal on main body
Headphone Jack: Available; 3.5mm stereo mini-jack
Remote Terminals: Available, 2.5mm stereo mini jack
CCU: Not Available
Power
Power Terminal:
Battery Pack: 7.4 V
DC in: 8.4V
Battery: BP-9 Series (BP-955 Supplied)
Compact Power Adapter: CA-940 N (Supplied)
Accessories
Tripod Adapter: Canon TA-100
Tripod Adapter Base: Canon TB-1
Zoom Remote Controller: Canon RC-V100
Other
Dimensions
C100 Mark II (Body plus Thumb Rest (without eyecup)):
Approx. 5.8(w) x 6.9(h) x 6.7(d) in. (147(w) x 174(h) x 169(d) mm)
C100 (Body plus Grip plus Eyecup):
Approx. 7.4(w) x 7.4(h) x 8.6(d) in. (188(w) x 189(h) x 219(d) mm)
C100 (Body plus Thumb Rest plus Handle Unit & Eyecup):
Approx. 7.4(w) x 11.0(h) x 13.1(d) in. (188w) x 280(h) x 334(d) mm)
Main Unit Weight: TBD
Total Equipped Weight :
TBD
(Weight includes the Grip, hook, Handle Unit, BP-955, 2x SD Cards.)
TBD
(Weight includes the Grip, hook, BP-955, 2x SD cards.)
Temperature and Humidity
Performance requirements: 0°C to 40°C, 85% (relative humidity)
Operating requirements: -5°C to 45°C, 60% (relative humidity)
Language Support
German, English, Spanish, French, Italian, Polish, Portuguese, Russian, simplified Chinese, Korean characters, and Japanese
You can use this description to display some useful information to your customers.
You can use this description to display some useful information to your customers.
